1559932
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

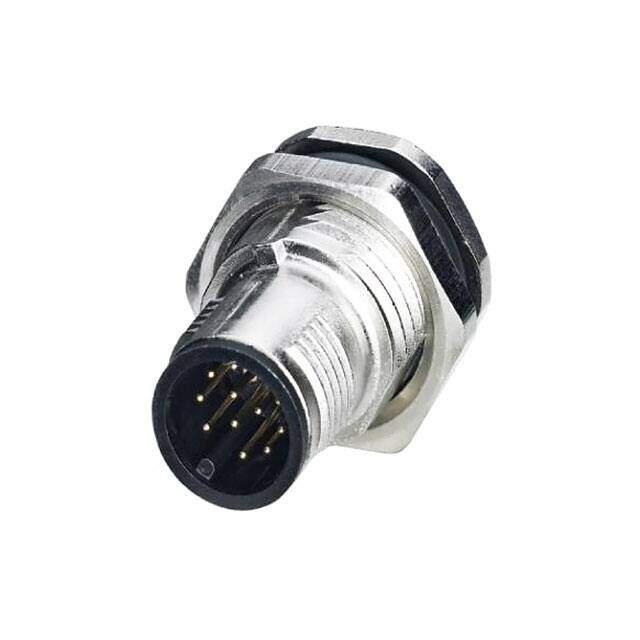

Circular Metric Connectors 12P MALE STRAIGHT
PDF
/
Buying Options
Total Price: USD $39.05
Unit Price: USD $39.0544
≥1 USD $39.0544
≥10 USD $35.92952
≥100 USD $33.195536
≥500 USD $31.633448
≥1000 USD $31.459789
Inventory: 105
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Thread Size M12
Max Current Rating 1.5A
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Shell Size - Insert M12-12
Shell Finish Nickel
Current Rating 1.5A
Reach Compliance Code unknown
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Total Number of Contacts 12
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Twist
Voltage - Rated 30V
Color Silver
Number of Positions 12
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series DSI
Published 2012
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Insert Material Polyamide (PA66), Nylon 6/6
Shell Material Zinc Die Cast
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount, Through Hole
Mount Bulkhead, Panel, Through Hole
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 8 Weeks
