1559929
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

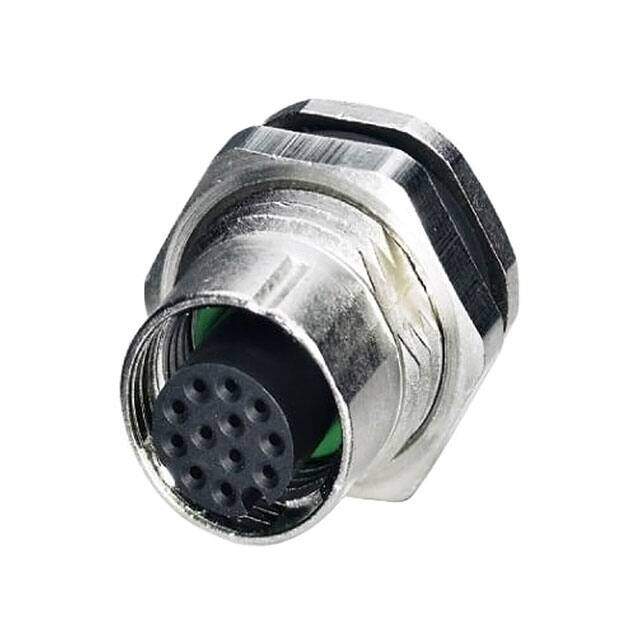

Circular Metric Connectors 12P FEMALE STRAIGHT
PDF
/
Buying Options
Total Price: USD $39.05
Unit Price: USD $39.0544
≥1 USD $39.0544
≥10 USD $35.92952
≥100 USD $33.195536
≥500 USD $31.633448
≥1000 USD $31.459789
Inventory: 144
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Zinc
Mount Bulkhead, Panel, Through Hole
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Shell Material Zinc Die Cast
Insert Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2011
Series DSI
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 12
Color Silver
Voltage - Rated 30V
HTS Code 8536.69.40.20
Fastening Type Push-Twist
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 12
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Depth 18mm
Current Rating 1.5A
Shell Finish Nickel
Shell Size - Insert M12-12
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Max Current Rating 1.5A
Thread Size M12
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
