RoHS
RoHS RoHS compliant
Package Metal
Category Connectors, Interconnects / Circular Connectors

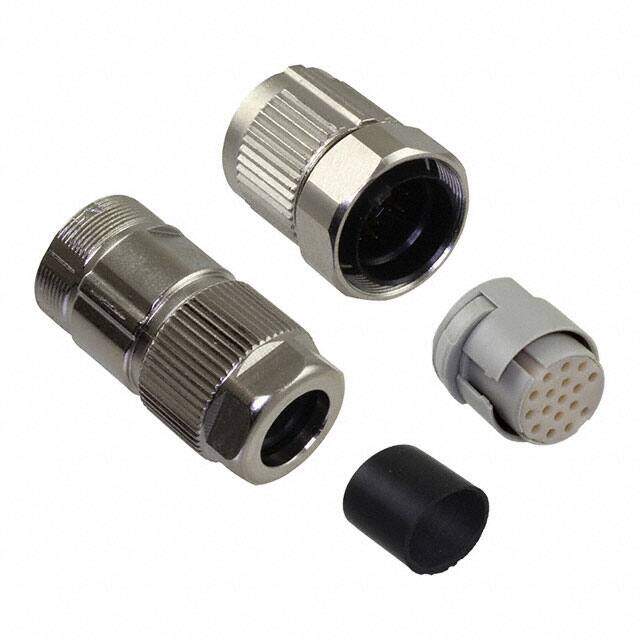

Description Circular Metric Connectors SACC-FS-17PCON SCO
PDF
/
Buying Options
Total Price: USD $55.58
Unit Price: USD $55.584575
≥1 USD $55.584575
≥10 USD $52.438273
≥100 USD $49.470067
≥500 USD $46.669884
≥1000 USD $44.028188
Inventory: 9173
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Material Copper Zinc
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case Metal
Shell Material Zinc Die Cast
Housing Material Zinc
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Zinc Die Cast, Nickel

Technical

Operating Temperature -25°C~85°C
Packaging Bulk
Published 2010
Series SACC
Feature Backshell, Coupling Nut
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Axial Pierce
Connector Type Receptacle, Female Sockets
Number of Positions 17
Color Silver
Gender Male
Voltage - Rated 30VAC/DC
Fastening Type Push-Twist
Contact Finish - Mating Gold
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Depth 41.2mm
Current Rating 1.5A
Shell Finish Nickel
Shell Size - Insert M12-17
Contact Gender Female
Max Current Rating 1.5A
Cable Opening 0.213 ~ 0.323 (5.40mm ~ 8.20mm)
Thread Size M12
Wire/Cable Diameter 1.05 mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
