RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors

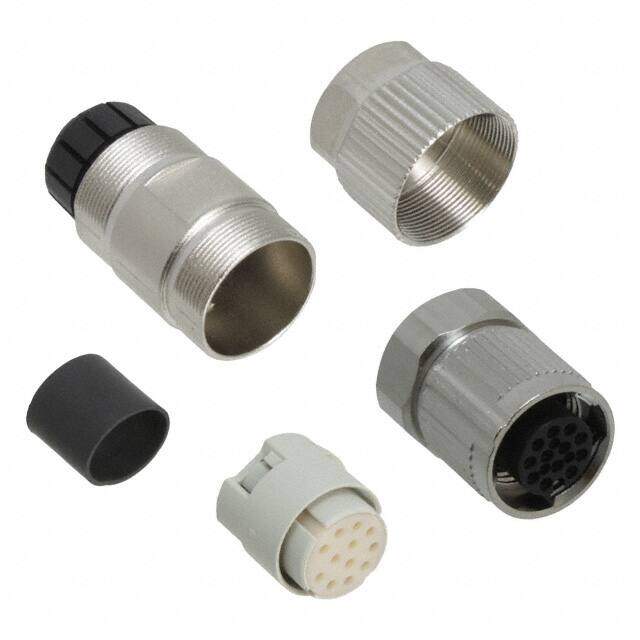

Description Circular Metric Connectors SACC-FS-12PCON SCO
PDF
/
Buying Options
Total Price: USD $37.1
Unit Price: USD $37.1008
≥1 USD $37.1008
Inventory: 70
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Wire/Cable Diameter 1.05 mm
Thread Size M12
Cable Opening 0.213 ~ 0.323 (5.40mm ~ 8.20mm)
Max Current Rating 1.5A
Contact Gender Female
Shell Size - Insert M12-12
Shell Finish Nickel
Current Rating 1.5A
Depth 41.2mm
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Contact Finish - Mating Gold
Fastening Type Push-Twist
HTS Code 8536.69.40.20
Voltage - Rated 30VAC/DC
Gender Male
Color Silver
Number of Positions 12
Connector Type Receptacle, Female Sockets
Termination Axial Pierce
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Coupling Nut
Series SACC
Published 2012
Packaging Bulk
Operating Temperature -25°C~85°C

Physical

Backshell Material, Plating Zinc Die Cast, Nickel
Insert Material Polyamide (PA), Nylon
Housing Material Zinc
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Zinc

Supply Chain

Factory Lead Time 4 Weeks
