1559602
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / Circular Connectors
Description

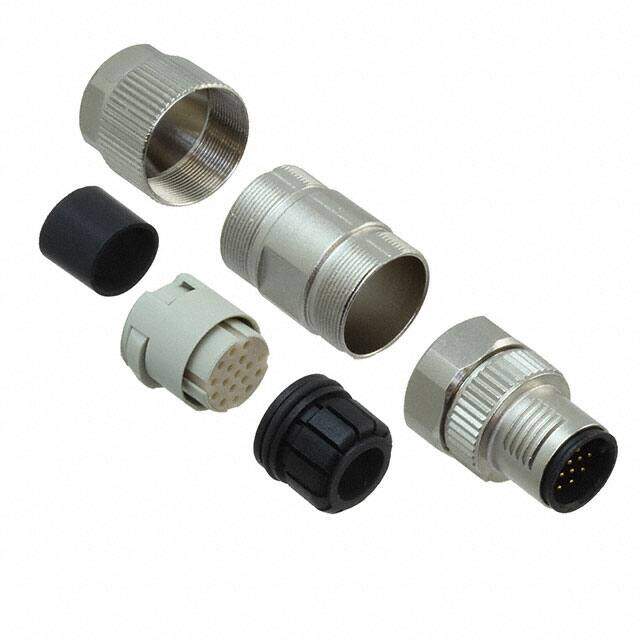

Circular Metric Connectors SACC-MS-17PCON SCO
PDF
/
Buying Options
Total Price: USD $50.12
Unit Price: USD $50.116
≥1 USD $50.116
≥10 USD $46.10848
≥100 USD $42.600272
≥500 USD $40.595456
Inventory: 44
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Wire/Cable Diameter 1.05 mm
Thread Size M12
Cable Opening 0.213 ~ 0.323 (5.40mm ~ 8.20mm)
Max Current Rating 1.5A
Contact Gender Male
Shell Size - Insert M12-17
Shell Finish Nickel
Current Rating 1.5A
Depth 42.7mm
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Contact Finish - Mating Gold
Fastening Type Push-Twist
HTS Code 8536.69.40.20
Voltage - Rated 30VAC/DC
Color Silver
Number of Positions 17
Connector Type Plug, Male Pins
Termination Axial Pierce
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell
Series SACC
Published 2010
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Backshell Material, Plating Zinc Die Cast, Nickel
Insert Material Polyamide (PA), Nylon
Housing Material Polyamide
Shell Material Zinc Die Cast
Package / Case Metal
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
