1559071
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

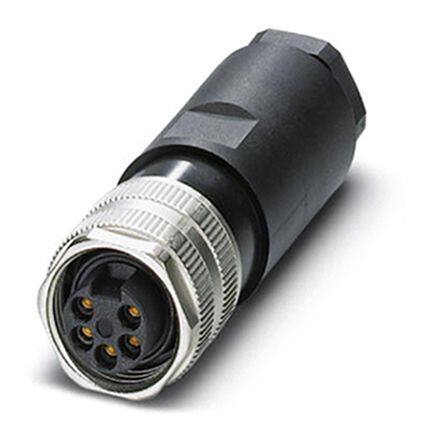

Standard Circular Connector SACC-MINFS-5C ON-PG16
PDF
/
Buying Options
Total Price: USD $41.93
Unit Price: USD $41.929667
≥1 USD $41.929667
≥10 USD $39.556295
≥100 USD $37.317252
≥500 USD $35.204963
≥1000 USD $33.212227
Inventory: 991
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB
Technical
Cable Opening 0.472 ~ 0.551 (12.00mm ~ 14.00mm)
Number of Ports 1
Plating Nickel, Zinc
Max Current Rating 9A
Shell Size - Insert 7/8-5
Shell Finish Nickel
Current Rating 9A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 300V
Gender Male
Color Black, Silver
Number of Positions 5
Connector Type Receptacle, Female Sockets
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Coupling Nut
Series SACC
Published 2012
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Backshell Material, Plating Polybutylene Terephthalate (PBT)
Insert Material Polyamide (PA66), Nylon 6/6 and Polyurethane (PUR)
Housing Material Plastic
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
