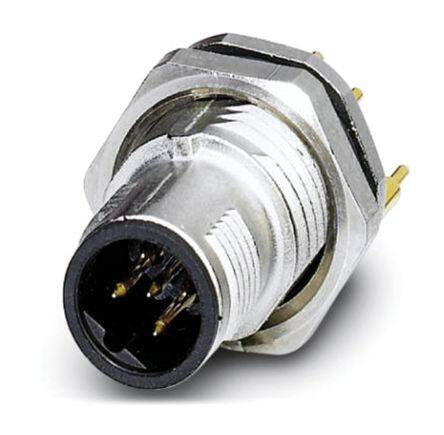

1558577 image
Favorite
1558577 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description Circular Metric Connectors SACC-DSI-MSB- 5CON-L180/12SCOSH
PDF
/
Inventory: 1092
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Thread Size M12
Coupling Type THREADED
Backshell Type SOLID
Empty Shell NO
Shell Size - Insert M12-5
Shell Finish Nickel
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation B
Total Number of Contacts 5
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Twist
Voltage - Rated 60V
Color Silver
Number of Positions 5
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Ground
JESD-609 Code e4
Series DSI
Published 2013
Packaging Bulk
Operating Temperature -25°C~85°C

Physical

Insert Material Polyamide (PA66), Nylon 6/6
Shell Material Zinc Die Cast
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount, Through Hole
Mount Bulkhead, Panel, Through Hole
Contact Material Copper Zinc

Supply Chain

Factory Lead Time 8 Weeks
