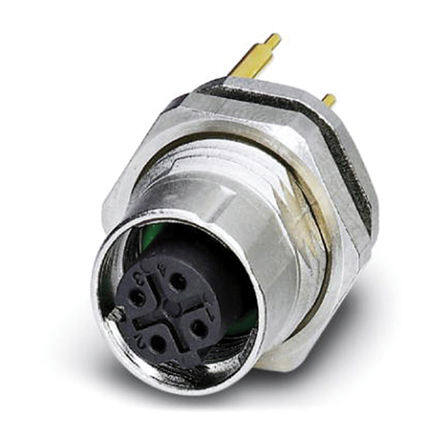

1558506
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Conn M12 Circular F 4 POS Solder ST Thru-Hole 4 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $18.84
Unit Price: USD $18.8408
≥1 USD $18.8408
≥10 USD $18.3304
≥100 USD $17.13096
≥500 USD $15.760536
≥1000 USD $14.56136
≥3000 USD $13.876122
Inventory: 94
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Through Hole
Technical
Published 2017
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 4
Termination Solder
Connector Type CIRCULAR CONNECTOR
Max Operating Temperature 85°C
Min Operating Temperature -25°C
Gender Male
Additional Feature SHIELDED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 4
Orientation Straight
Empty Shell NO
Backshell Type SOLID
Body/Shell Style SOCKET
Max Current Rating 4A
Plating Nickel, Zinc
Coupling Type THREADED
Number of Ports 1
Compliance
RoHS Status RoHS Compliant
Ratings IP67
