1557549
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

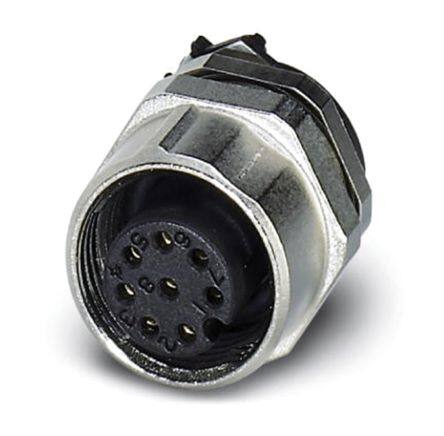

Circular Metric Connectors FS-8CON-L180-THR SH 8P M12 SKT PNL MNT
PDF
/
Buying Options
Total Price: USD $23.77
Unit Price: USD $23.769127
≥1 USD $23.769127
≥10 USD $22.423702
≥100 USD $21.154434
≥500 USD $19.957014
≥1000 USD $18.827377
Inventory: 8701
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Zinc
Mount Bulkhead, Panel, Through Hole
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Rear Side Nut
Shell Material Zinc Die Cast
Housing Material Zinc
Weight 10.580014g
Insert Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -25°C~85°C
Packaging Tray
Published 2011
Series DSIV
JESD-609 Code e4
Feature Board Guide
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 8
Color Silver
Voltage - Rated 30V
Fastening Type Push-Twist
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 8
Orientation A
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 2A
Shell Finish Nickel
Shell Size - Insert M12-8
Empty Shell NO
Backshell Type SOLID
Max Current Rating 2A
Number of Ports 1
Thread Size M12
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
