Package /
Category Connectors, Interconnects / Circular Connectors

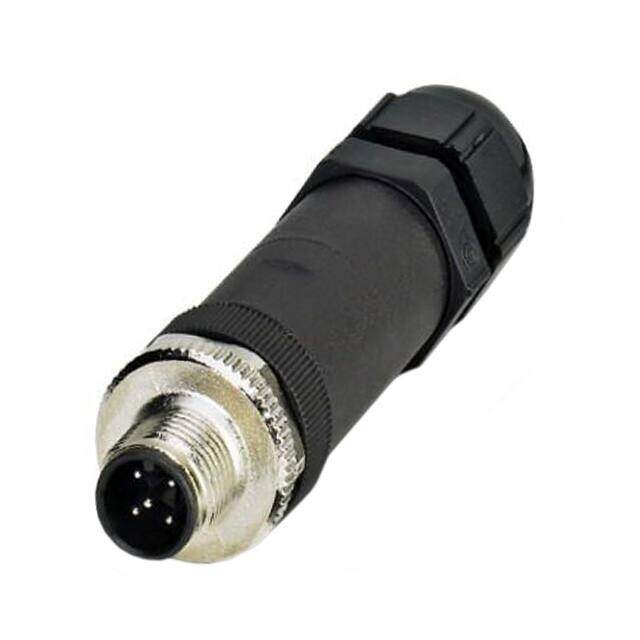

Description Plug-in connector SACC-M12MS-5CON-PG9-M SKIN 1556825 Phoenix Contact
PDF
/
Buying Options
Total Price: USD $17.92
Unit Price: USD $17.9168
≥1 USD $17.9168
≥10 USD $16.48152
≥100 USD $15.227872
≥500 USD $14.5112
≥1000 USD $14.431578
Inventory: 16
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 HB

Technical

Cable Opening 0.236 ~ 0.315 (6.00mm ~ 8.00mm)
Shell Size - Insert M12-5
Shell Finish Nickel
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Contact Finish - Mating Copper Alloy
Voltage - Rated DC 60V
Fastening Type Threaded
Voltage - Rated 48VAC 60VDC
Color Black, Silver
Number of Positions 5
Connector Type Plug, Male Pins
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell
Series SKINTOP?
Published 2013
Packaging Bulk
Operating Temperature -20°C~80°C

Physical

Backshell Material, Plating Polybutylene Terephthalate (PBT)
Insert Material Polyamide (PA), Nylon
Housing Material Plastic
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Zinc

Supply Chain

Factory Lead Time 4 Weeks
