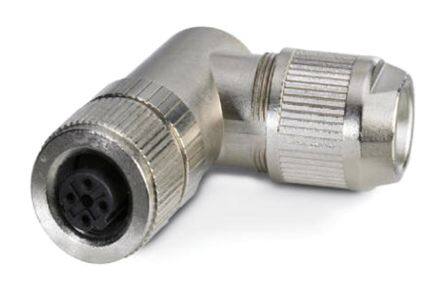

1554542 image
Favorite
1554542 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description Bus system plug-in connector SACC-M12FRD-4Q SH PN 1554542 Phoenix Contact
PDF
/
Buying Options
Total Price: USD $30.26
Unit Price: USD $30.2632
≥1 USD $30.2632
≥10 USD $27.84144
≥100 USD $25.723104
≥500 USD $24.512576
≥1000 USD $24.377971
Inventory: 71
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Material Copper Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line), Angled
Shell Material Brass
Housing Material Metal
Insert Material Polyamide (PA66), Nylon 6/6
Backshell Material, Plating Zinc Die Cast, Nickel

Technical

Operating Temperature -40°C~85°C
Packaging Bulk
Published 2013
Series SACC
JESD-609 Code e4
Feature Backshell, Coupling Nut
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Receptacle, Female Sockets
Number of Positions 4
Color Silver
Voltage - Rated 48VAC 60VDC
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 4
Orientation D
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 1.75A
Shell Finish Nickel
Shell Size - Insert M12-4
Empty Shell NO
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
