1554526
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

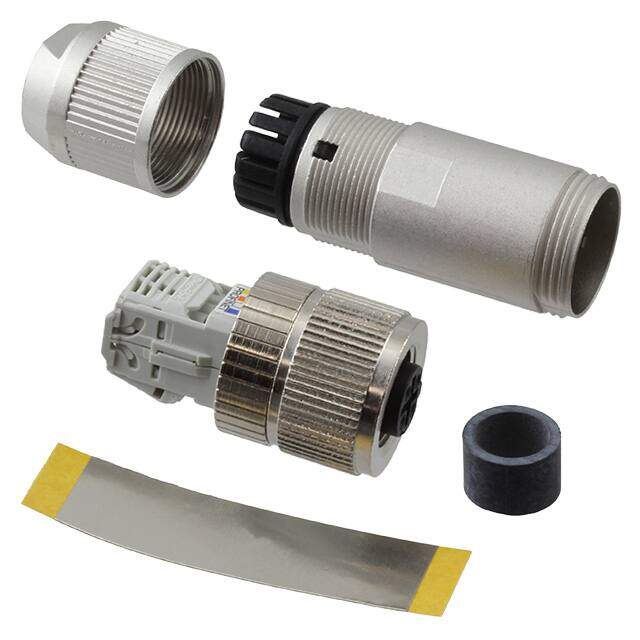

Circular Metric Connectors SACC-M12FSD-4 Q SH PN
PDF
/
Buying Options
Total Price: USD $24.36
Unit Price: USD $24.3584
≥1 USD $24.3584
Inventory: 13
Minimum: 1
-
+
Technical Details
Technical
Wire/Cable Diameter 8 mm
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2011
Series SACC
JESD-609 Code e4
Feature Backshell, Coupling Nut
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 4
Color Silver
Voltage - Rated 48VAC 60VDC
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 4
Orientation D
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Reach Compliance Code not_compliant
Current Rating 1.75A
Shell Finish Nickel
Shell Size - Insert M12-4
Contact Gender Female
Empty Shell NO
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Thread Size M12
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Brass
Housing Material Zinc
Insert Material Polyamide (PA66), Nylon 6/6
Backshell Material, Plating Zinc Die Cast, Nickel
