1554209
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

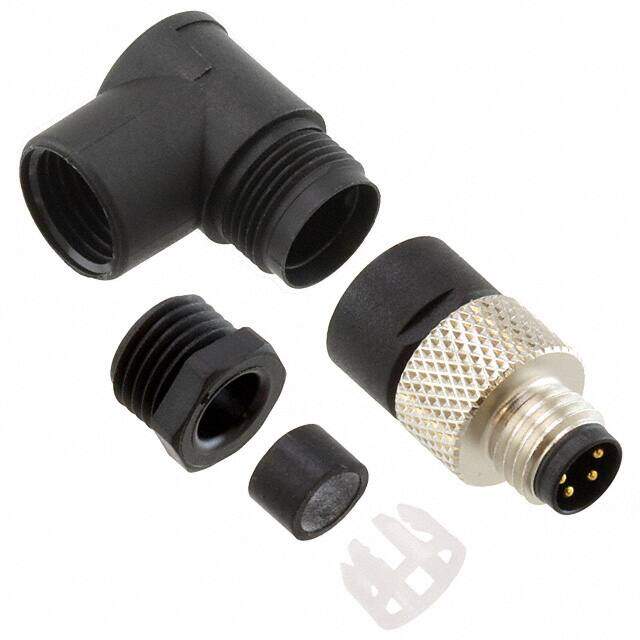

Circular Metric Connectors SACC-M 8MR-4CON-M
PDF
/
Buying Options
Total Price: USD $17.81
Unit Price: USD $17.810663
≥1 USD $17.810663
≥10 USD $16.802511
≥100 USD $15.851426
≥500 USD $14.954177
≥1000 USD $14.107708
Inventory: 5608
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 HB
Technical
Thread Size M8
Cable Opening 0.138 ~ 0.197 (3.50mm ~ 5.00mm)
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Shell Size - Insert M8-4
Shell Finish Nickel
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Total Number of Contacts 4
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Voltage - Rated DC 30V
Fastening Type Threaded
Voltage - Rated 30VAC/DC
Color Black, Silver
Number of Positions 4
Connector Type Plug, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell
JESD-609 Code e4
Series SACC
Published 2010
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Polybutylene Terephthalate (PBT)
Insert Material Polyamide (PA), Nylon
Housing Material Plastic
Shell Material Brass
Mounting Type Free Hanging (In-Line), Right Angle
Mount Free Hanging
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
