1553873
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

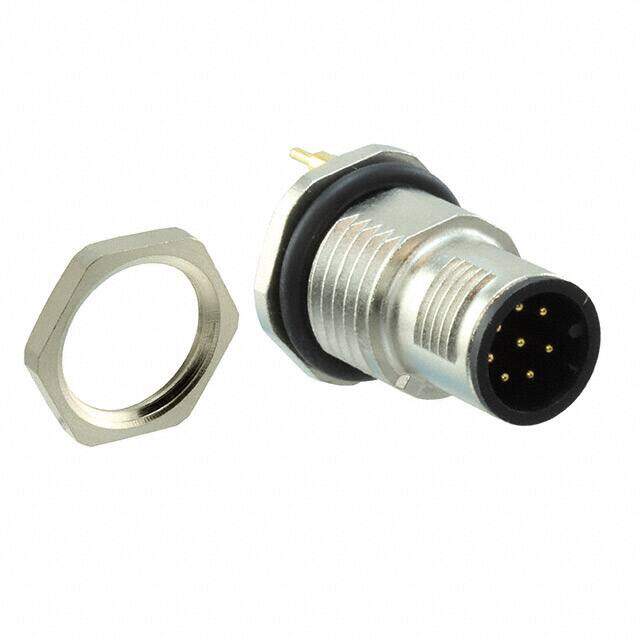

Conn M12 Circular PIN 8 POS Solder ST Panel Mount 8 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $26.07
Unit Price: USD $26.0656
≥1 USD $26.0656
≥10 USD $23.98
≥100 USD $22.155056
≥500 USD $21.11252
≥1000 USD $20.996589
Inventory: 70
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Zinc
Mount Bulkhead, Front Side Nut, Panel, Screw
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Shell Material Zinc Die Cast
Housing Material Polyamide
Weight 13.499986g
Insert Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2012
Series DSI
JESD-609 Code e4
Feature Ground
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 8
Color Silver
Fastening Type Push-Twist
Voltage - Rated DC 30V
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 8
Orientation A
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Depth 18mm
Current Rating 2A
Shell Finish Nickel
Shell Size - Insert M12-8
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Max Current Rating 2A
Number of Ports 1
Thread Size M12
Dimensions
Length 29mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
