1553653
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

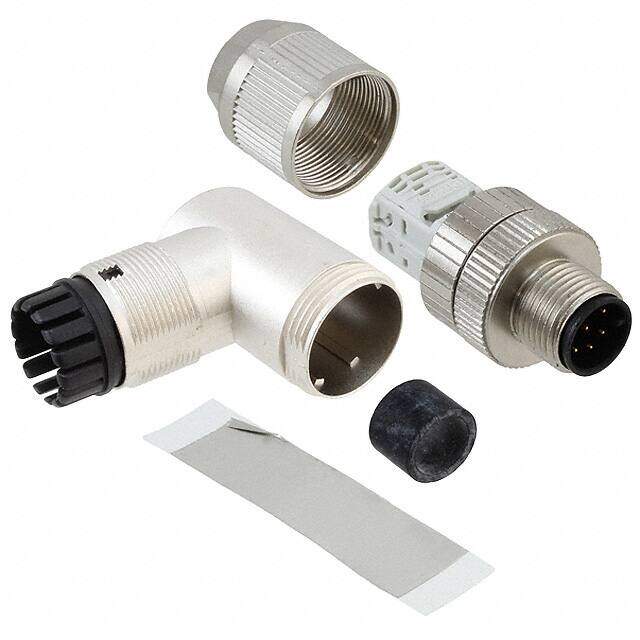

Circular Metric Connectors SACC-M12MR-8Q SH
PDF
/
Buying Options
Total Price: USD $49.26
Unit Price: USD $49.2624
≥1 USD $49.2624
≥10 USD $45.32176
≥100 USD $41.873216
≥500 USD $39.902632
Inventory: 34
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line), Angled
Shell Material Brass
Housing Material Zinc
Insert Material Polyamide (PA66), Nylon 6/6
Backshell Material, Plating Zinc Die Cast, Nickel
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2011
Series SACC
JESD-609 Code e4
Feature Backshell
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Plug, Male Pins
Number of Positions 8
Color Silver
Voltage - Rated 30VAC/DC
Fastening Type Threaded
Voltage - Rated DC 30V
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 8
Orientation A
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Depth 41mm
Current Rating 1.75A
Shell Finish Nickel
Shell Size - Insert M12-8
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Max Current Rating 1.75A
Number of Ports 1
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Thread Size M12
Dimensions
Length 50mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
