1553640
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

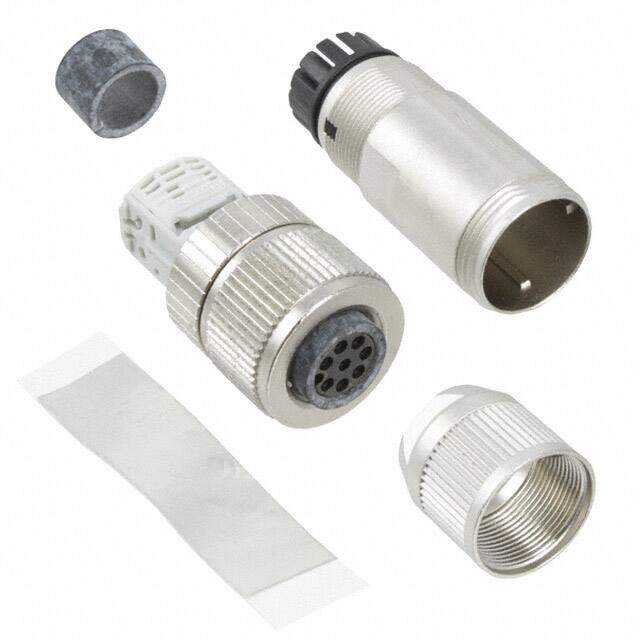

Circular Metric Connectors SACC-M12FS-8Q SH BUS SYSTEM
PDF
/
Buying Options
Total Price: USD $47.67
Unit Price: USD $47.6696
≥1 USD $47.6696
≥10 USD $43.85656
≥100 USD $40.520128
≥500 USD $38.613168
Inventory: 136
Minimum: 1
-
+
Technical Details
Technical
Published 2009
Series SACC
JESD-609 Code e4
Feature Backshell, Coupling Nut
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Receptacle, Female Sockets
Number of Positions 8
Color Silver
Voltage - Rated 30VAC/DC
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 8
Orientation A
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Reach Compliance Code unknown
Current Rating 1.75A
Shell Finish Nickel
Shell Size - Insert M12-8
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Thread Size M12
Packaging Bulk
Operating Temperature -40°C~85°C
Wire/Cable Diameter 8 mm
Physical
Backshell Material, Plating Zinc Die Cast, Nickel
Insert Material Polyamide (PA66), Nylon 6/6
Housing Material Zinc
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Tin
Supply Chain
Factory Lead Time 4 Weeks
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
