1553297
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

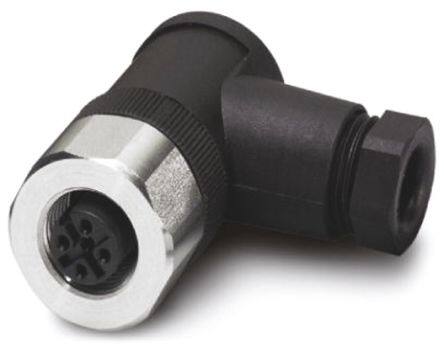

Circular Metric Connectors SACC-M12FR-5CON -PG 7-VA
PDF
/
Buying Options
Total Price: USD $18.37
Unit Price: USD $18.3744
≥1 USD $18.3744
≥10 USD $16.9048
≥100 USD $15.61824
≥500 USD $14.883264
≥1000 USD $14.8016
Inventory: 94
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, IP67, Water Resistant, Waterproof
RoHS Status RoHS Compliant
REACH SVHC Unknown
Technical
Thread Size M12
Cable Opening 0.157 ~ 0.236 (4.00mm ~ 6.00mm)
Number of Ports 1
Plating Steel
Max Current Rating 4A
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Shell Size - Insert M12-5
Current Rating 4A
Ingress Protection IP65/67/69K - Dust Tight, Water Resistant, Waterproof
Orientation A
Total Number of Contacts 5
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Voltage - Rated DC 60V
Fastening Type Threaded
Voltage - Rated 48VAC 60VDC
Gender Receptacle
Color Black, Silver
Number of Positions 5
Connector Type Receptacle, Female Sockets
Termination Screw
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell, Coupling Nut
JESD-609 Code e4
Series SACC
Published 2012
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Polyamide (PA), Nylon
Insert Material Polyamide (PA), Nylon
Weight 29.099992g
Housing Material Polyamide
Shell Material Stainless Steel
Mounting Type Free Hanging (In-Line), Right Angle
Mount Cable, Free Hanging
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
