1553242
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

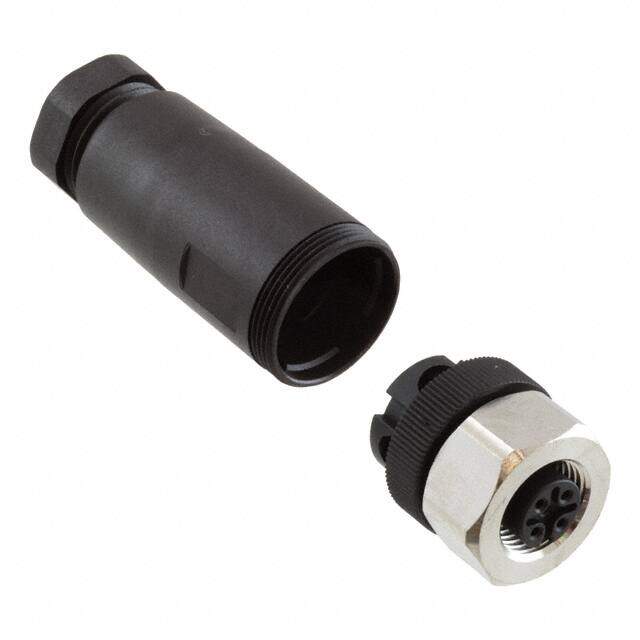

Circular Metric Connectors SACC-M12FS-4CON -PG 7-VA
PDF
/
Buying Options
Total Price: USD $15.12
Unit Price: USD $15.1184
≥1 USD $15.1184
≥10 USD $13.91016
≥100 USD $12.851344
≥500 USD $12.246608
≥1000 USD $12.179411
Inventory: 91
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Zinc
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Stainless Steel
Housing Material Polyamide
Weight 28.349523g
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Polyamide (PA), Nylon
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2012
Series SACC
JESD-609 Code e4
Feature Backshell, Coupling Nut
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Receptacle, Female Sockets
Number of Positions 4
Color Black, Silver
Gender Receptacle
Fastening Type Threaded
Voltage - Rated DC 250V
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 4
Orientation A
Ingress Protection IP65/67/69K - Dust Tight, Water Resistant, Waterproof
Current Rating 4A
Shell Size - Insert M12-4
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Cable Opening 0.157 ~ 0.236 (4.00mm ~ 6.00mm)
Thread Size M12
Wire/Cable Diameter 6 mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Ratings Dust Tight, IP65, IP67, IP69K, Waterproof
