1553161
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

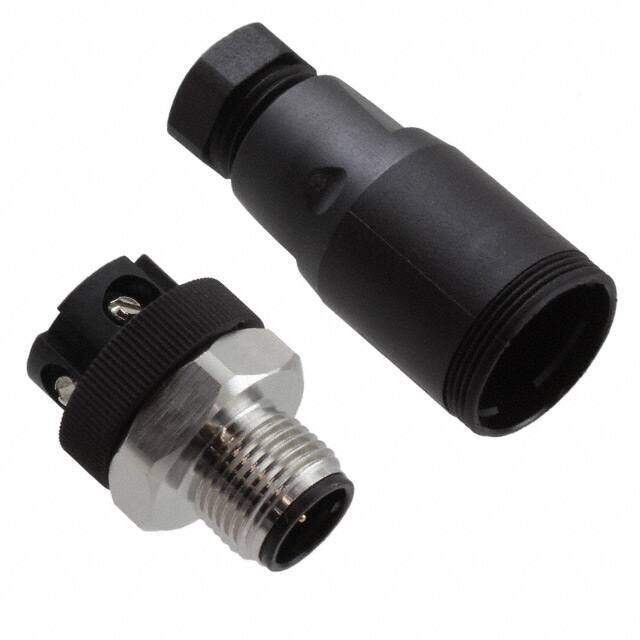

Circular Metric Connectors SACC-M12MS-4CON -PG 7-VA
PDF
/
Buying Options
Total Price: USD $15.12
Unit Price: USD $15.1184
≥1 USD $15.1184
≥10 USD $13.91016
≥100 USD $12.851344
≥500 USD $12.246608
≥1000 USD $12.179411
Inventory: 91
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, IP67, IP69K, Waterproof
RoHS Status RoHS Compliant
REACH SVHC Unknown
Technical
Wire/Cable Diameter 6 mm
Thread Size M12
Cable Opening 0.157 ~ 0.236 (4.00mm ~ 6.00mm)
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Shell Size - Insert M12-4
Current Rating 4A
Ingress Protection IP65/67/69K - Dust Tight, Water Resistant, Waterproof
Orientation A
Total Number of Contacts 4
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Voltage - Rated DC 250V
Fastening Type Threaded
Voltage - Rated 250V
Color Black, Silver
Number of Positions 4
Connector Type Plug, Male Pins
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell
JESD-609 Code e4
Series SACC
Published 2011
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Polyamide (PA), Nylon
Insert Material Polyamide (PA), Nylon
Weight 23.499997g
Housing Material Polyamide
Shell Material Stainless Steel
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
