1552997
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

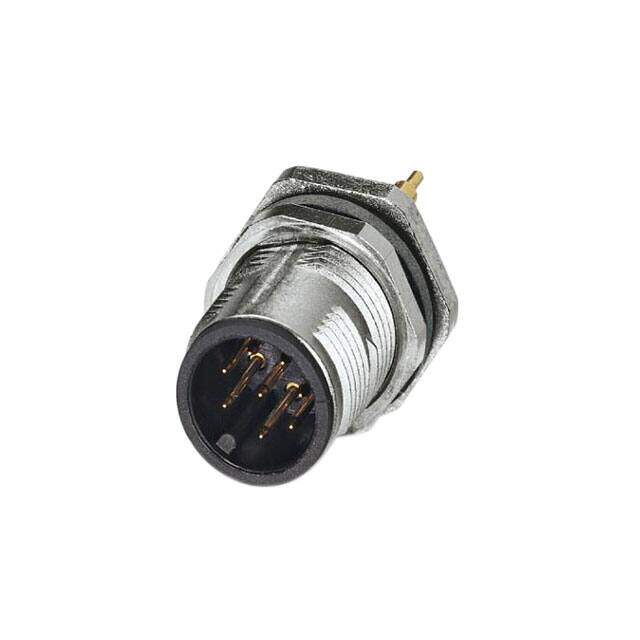

Circular Metric Connectors SACC-DSI-MS-8 CON-M12-SCO SH
PDF
/
Buying Options
Total Price: USD $27.82
Unit Price: USD $27.8168
≥1 USD $27.8168
≥10 USD $25.58952
≥100 USD $23.642784
≥500 USD $22.530288
≥1000 USD $22.40656
Inventory: 82
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 15mm
Height 22.5mm
Technical
Ambient Temperature Range High 85°C
Thread Size M12
Number of Ports 1
Max Current Rating 2A
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Shell Size - Insert M12-8
Shell Finish Nickel
Current Rating 2A
Reach Compliance Code unknown
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation A
Total Number of Contacts 8
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Twist
Voltage - Rated 30V
Gender Female
Color Silver
Number of Positions 8
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Ground
JESD-609 Code e4
Series DSI
Published 2009
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Insert Material Polyamide (PA66), Nylon 6/6
Weight 8.500009g
Shell Material Zinc Die Cast
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount, Through Hole
Mount Bulkhead, Front Side Nut, Panel, Through Hole
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 8 Weeks
