1552971
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

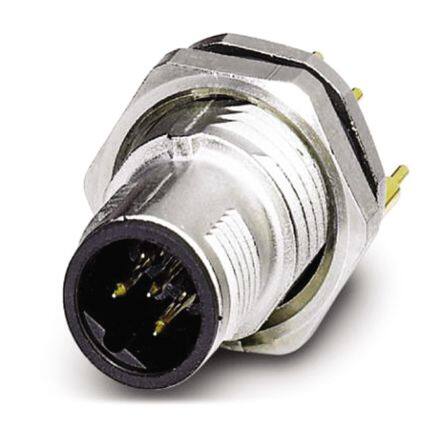

Panel feed-through SACC-DSI-MSB-5CON-M12-SCO SH 1552971 Phoenix Contact
PDF
/
Buying Options
Total Price: USD $18.51
Unit Price: USD $18.505304
≥1 USD $18.505304
≥10 USD $17.457834
≥100 USD $16.469657
≥500 USD $15.537407
≥1000 USD $14.657926
Inventory: 5337
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Coupling Type THREADED
Backshell Type SOLID
Empty Shell NO
Shell Size - Insert M12-5
Shell Finish Nickel
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation B
Total Number of Contacts 5
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Twist
Voltage - Rated 60V
Color Silver
Number of Positions 5
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Ground
JESD-609 Code e4
Series DSI
Published 2013
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Insert Material Polyamide (PA66), Nylon 6/6
Shell Material Zinc Die Cast
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount, Through Hole
Mount Bulkhead, Front Side Nut, Panel
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 8 Weeks
