1552968
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

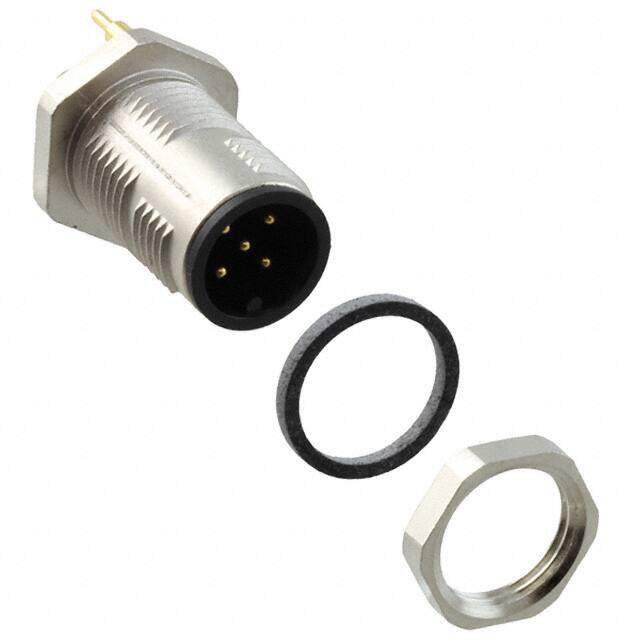

Circular Metric Connectors SACC-DSI-MS-5 CON-M12-SCO SH
PDF
/
Buying Options
Total Price: USD $18.16
Unit Price: USD $18.1632
≥1 USD $18.1632
≥10 USD $17.66952
≥100 USD $16.5132
≥500 USD $15.192144
≥1000 USD $14.036282
≥3000 USD $13.375736
Inventory: 130
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper Zinc
Mount Bulkhead, Front Side Nut, Panel, Through Hole
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Insert Material Polyamide (PA66), Nylon 6/6
Housing Material Polyamide
Shell Material Zinc Die Cast
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Technical
Thread Size M12
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Shell Size - Insert M12-5
Shell Finish Nickel
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation A
Total Number of Contacts 5
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Voltage - Rated DC 60V
Fastening Type Push-Twist
Voltage - Rated 60V
Color Silver
Number of Positions 5
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Ground
JESD-609 Code e4
Series DSI
Published 2009
Packaging Bulk
Operating Temperature -25°C~85°C
