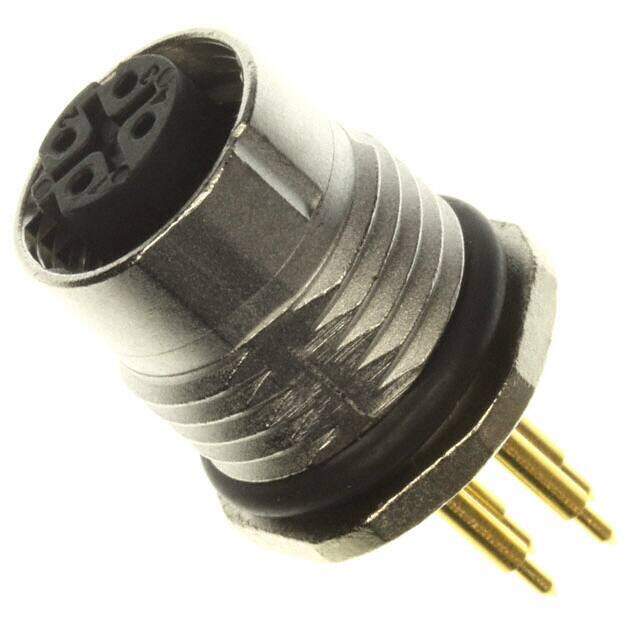

1552272 image
Favorite
1552272 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description CONN RCPT FMALE 4POS GOLD SOLDER
PDF
/
Buying Options
Total Price: USD $21.54
Unit Price: USD $21.5424
≥1 USD $21.5424
≥10 USD $19.81936
≥100 USD $18.31104
≥500 USD $17.449432
≥1000 USD $17.3536
Inventory: 105
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Thread Size M12
Number of Ports 1
Max Current Rating 4A
Empty Shell NO
Contact Gender Female
Shell Size - Insert M12-4
Shell Finish Nickel
Current Rating 4A
Reach Compliance Code unknown
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation D
Total Number of Contacts 4
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Twist
Voltage - Rated 250V
Color Silver
Number of Positions 4
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series DSI
Published 2010
Packaging Bulk
Operating Temperature -25°C~85°C

Physical

Insert Material Polyamide (PA66), Nylon 6/6
Weight 14.399999g
Housing Material Zinc
Shell Material Zinc Die Cast
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount, Through Hole
Mount Bulkhead, Panel, Through Hole
Contact Material Copper Zinc

Supply Chain

Factory Lead Time 8 Weeks
