1551833
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

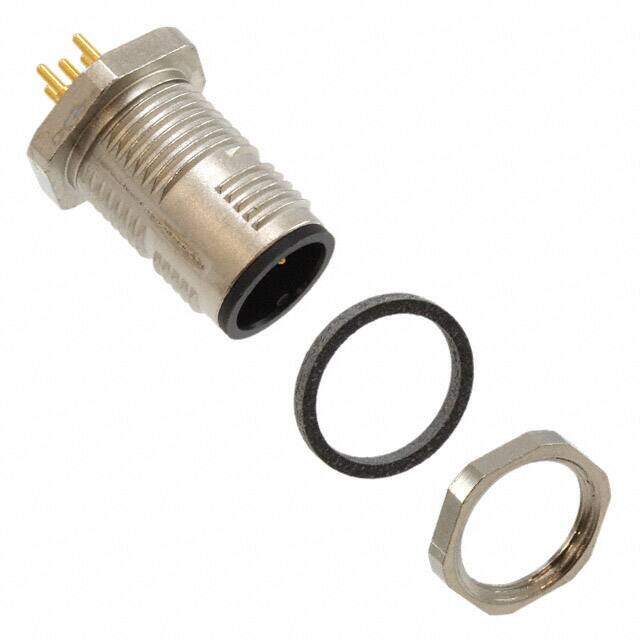

Circular Metric Connectors SACC-DSI-MS- 5CON-M12 SCO
PDF
/
Buying Options
Total Price: USD $16.95
Unit Price: USD $16.9488
≥1 USD $16.9488
≥10 USD $16.4824
≥100 USD $15.4044
≥500 USD $14.172048
≥1000 USD $13.093802
≥3000 USD $12.47759
Inventory: 121
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Zinc
Mount Through Hole
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Shell Material Zinc Die Cast
Insert Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2011
Series DSI
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 5
Color Silver
Voltage - Rated 60V
Fastening Type Push-Twist
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Current Rating (Amps) 4A
Total Number of Contacts 5
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Shell Finish Nickel
Shell Size - Insert M12-5
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Thread Size M12
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
