1551820
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

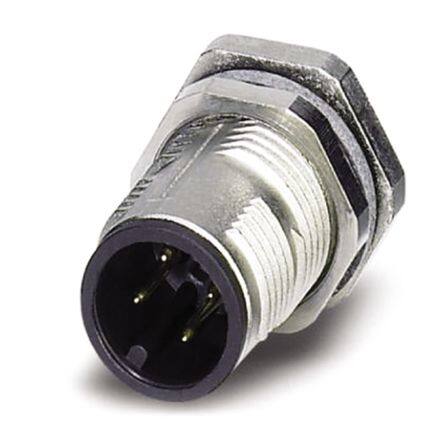

Circular Metric Connectors SACC-DSI-MS-4CON-M12
PDF
/
Buying Options
Total Price: USD $13.94
Unit Price: USD $13.9392
≥1 USD $13.9392
≥10 USD $12.82424
≥100 USD $11.84832
≥500 USD $11.290752
≥1000 USD $11.2288
Inventory: 20
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 16.5mm
Technical
Thread Size M12
Number of Ports 1
Max Current Rating 4A
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Shell Size - Insert M12-4
Shell Finish Nickel
Current Rating 4A
Depth 15mm
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Total Number of Contacts 4
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Twist
Voltage - Rated 250V
Gender Female
Color Silver
Number of Positions 4
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series DSI
Published 2009
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Insert Material Polyamide (PA66), Nylon 6/6
Weight 8.300003g
Shell Material Zinc Die Cast
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount, Through Hole
Mount Bulkhead, Panel, Through Hole
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 8 Weeks
