RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors

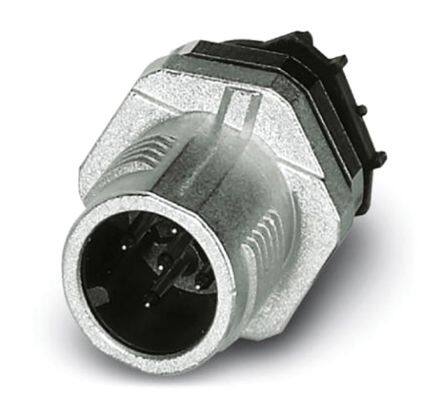

Description Circular Metric Connectors SACC-DSIV-MS -5CON-L180 SCO THR
PDF
/
Inventory: 6638
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Contact Material Copper Zinc
Mount Bulkhead, Panel, Through Hole
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Rear Side Nut
Shell Material Zinc Die Cast
Weight 9.570005g
Insert Material Polyphthalamide (PPA)

Technical

Operating Temperature -25°C~85°C
Packaging Tray
Published 2011
Series DSIV
JESD-609 Code e4
Feature Board Guide
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 5
Color Silver
Voltage - Rated 60V
Fastening Type Push-Twist
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 5
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M12-5
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Thread Size M12

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
