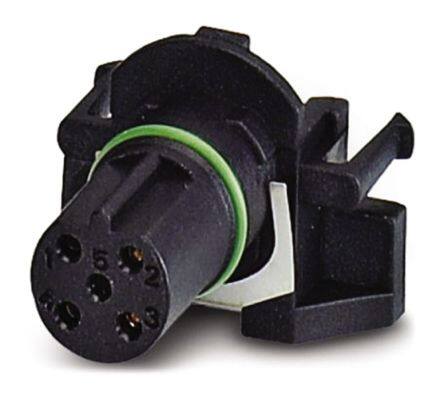

1551477
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Circular Metric Connectors SACC-CI-M12FSB -5CON-L180
PDF
/
Buying Options
Total Price: USD $9.27
Unit Price: USD $9.2697
≥1 USD $9.2697
≥10 USD $8.745
≥100 USD $8.25
Inventory: 419
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Zinc
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide
Insert Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2011
Series SACC
Feature Board Guide, Board Lock, Insert Only, Requires Shell
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Insert, Female Sockets
Number of Positions 5
Voltage - Rated 60V
Contact Finish - Mating Gold
Orientation B
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Depth 15.4mm
Current Rating 4A
Shell Size - Insert M12-5
Contact Gender Female
Max Current Rating 4A
Number of Ports 1
Thread Size M12
Dimensions
Length 19.5mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
