1551448
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

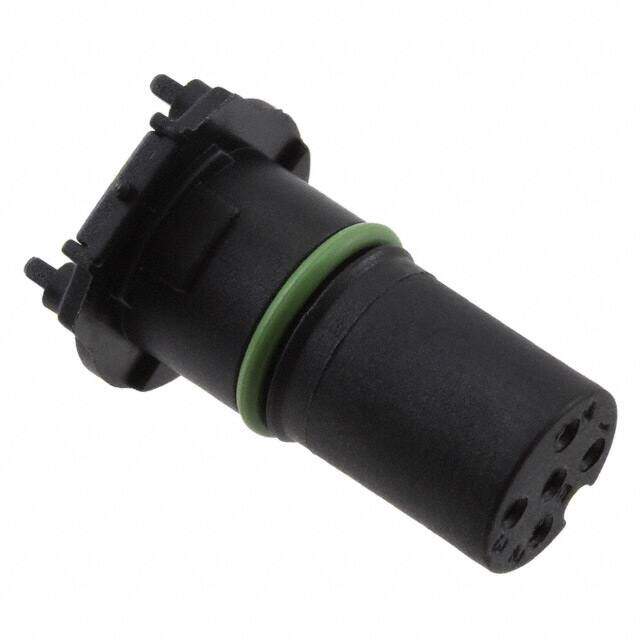

Circular Metric Connectors SACC-CI-M12FS- 5CON-L180-THR
PDF
/
Buying Options
Total Price: USD $6.31
Unit Price: USD $6.31463
≥1 USD $6.31463
≥10 USD $5.9572
≥100 USD $5.62
≥500 USD $5.30189
Inventory: 1170
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Thread Size M12
Number of Ports 1
Plating Polyamide
Max Current Rating 4A
Contact Gender Female
Shell Size - Insert M12-5
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 60V
Number of Positions 5
Connector Type Insert, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Insert Only, Requires Shell
Series SACC
Published 2011
Packaging Tray
Operating Temperature -25°C~85°C
Physical
Insert Material Polyphthalamide (PPA)
Weight 3.500004g
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
