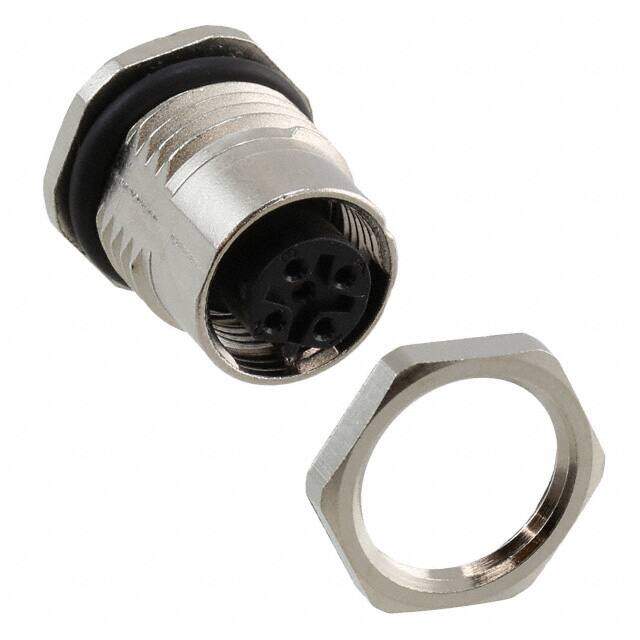

1543650 image
Favorite
1543650 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description Circular Metric Connectors SACC-DSIFSB5CON-L180 5POS M12 SCKT B CODE
PDF
/
Buying Options
Total Price: USD $15.96
Unit Price: USD $15.9632
≥1 USD $15.9632
≥10 USD $14.68192
≥100 USD $13.565024
≥500 USD $12.926672
≥1000 USD $12.855709
Inventory: 76
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Contact Material Copper Zinc
Mount Bulkhead, Front Side Nut, Panel, Screw, Through Hole
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Shell Material Zinc Die Cast
Housing Material Polyamide
Weight 17.250004g
Insert Material Polyamide (PA66), Nylon 6/6

Technical

Operating Temperature -25°C~85°C
Packaging Bulk
Published 2009
Series DSI
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 5
Color Silver
Gender Male
Voltage - Rated 60V
Fastening Type Push-Twist
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 5
Orientation B
Ingress Protection IP67 - Dust Tight, Waterproof
Reach Compliance Code unknown
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M12-5
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Max Current Rating 4A
Coupling Type THREADED
Number of Ports 1
Thread Size M12

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
