Package /
Category Connectors, Interconnects / Circular Connectors

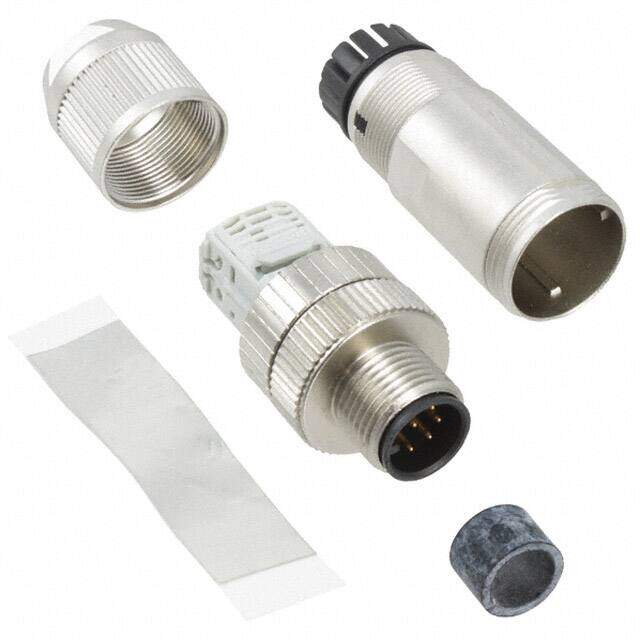

Description Circular Metric Connectors SACC-M12MS-8Q SH 8P M12 QUICKON
PDF
/
Buying Options
Total Price: USD $45.69
Unit Price: USD $45.6896
≥1 USD $45.6896
≥10 USD $42.03496
≥100 USD $38.83704
≥500 USD $37.009368
≥1000 USD $36.806211
Inventory: 291
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Material Copper Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Zinc Die Cast
Housing Material Zinc
Weight 46.060009g
Insert Material Polyamide (PA66), Nylon 6/6
Backshell Material, Plating Zinc Die Cast, Nickel

Technical

Operating Temperature -40°C~85°C
Packaging Bulk
Published 2009
Series SACC
JESD-609 Code e4
Feature Backshell
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Plug, Male Pins
Number of Positions 8
Color Silver
Voltage - Rated 30VAC/DC
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Current Rating (Amps) 2A
Total Number of Contacts 8
Orientation A
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Reach Compliance Code unknown
Current Rating 1.75A
Shell Finish Nickel
Shell Size - Insert M12-8
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Thread Size M12
Wire/Cable Diameter 8 mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
