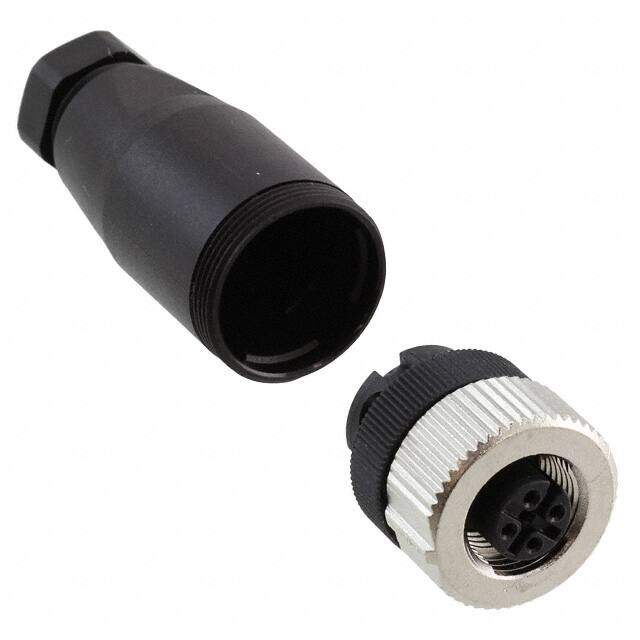

1543029 image
Favorite
1543029 image
Favorite
RoHS
RoHS RoHS compliant
Package Metal
Category Connectors, Interconnects / Circular Connectors
Description Circular Metric Connectors SACC-FS-4CON-PG 7-M SCO
PDF
/
Buying Options
Total Price: USD $11.78
Unit Price: USD $11.7832
≥1 USD $11.7832
≥10 USD $10.84248
≥100 USD $10.017216
≥500 USD $9.5458
≥1000 USD $9.49344
Inventory: 203
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 HB

Technical

Thread Size M12
Cable Opening 0.157 ~ 0.236 (4.00mm ~ 6.00mm)
Number of Ports 1
Max Current Rating 4A
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Shell Size - Insert M12-4
Shell Finish Nickel
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Total Number of Contacts 4
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Copper Alloy
Voltage - Rated DC 250V
Fastening Type Push-Twist
Voltage - Rated 250VAC/DC
Gender Receptacle
Color Black, Silver
Number of Positions 4
Connector Type Receptacle, Female Sockets
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell, Coupling Nut
Series SACC
Published 2009
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Backshell Material, Plating Polybutylene Terephthalate (PBT)
Insert Material Polyamide (PA), Nylon
Weight 24.90001g
Housing Material PBT
Shell Material Brass
Package / Case Metal
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Zinc

Supply Chain

Factory Lead Time 4 Weeks
