RoHS
RoHS RoHS compliant
Package Metal
Category Connectors, Interconnects / Circular Connectors

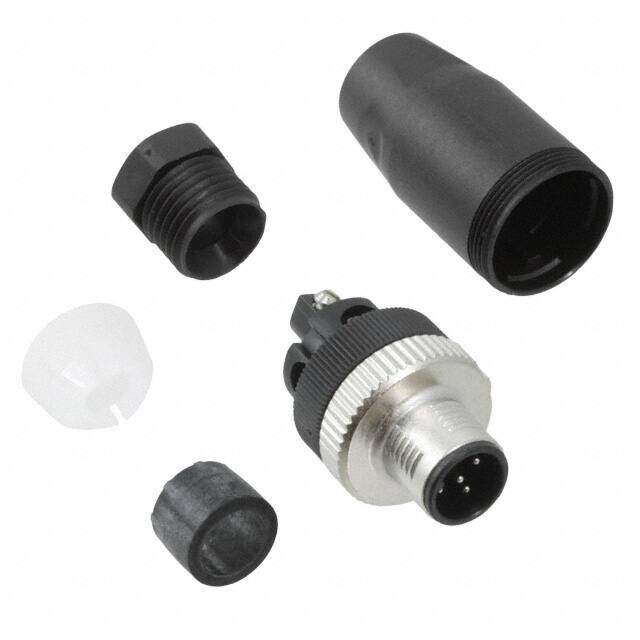

Description Circular Metric Connectors SACC-MS-5CON-PG 7-M SCO
PDF
/
Buying Options
Total Price: USD $13.58
Unit Price: USD $13.575482
≥1 USD $13.575482
≥10 USD $12.807059
≥100 USD $12.082131
≥500 USD $11.398238
≥1000 USD $10.753057
Inventory: 6299
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Material Copper Zinc
Contact Plating Brass
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case Metal
Shell Material Zinc Die Cast
Housing Material PBT
Weight 23.499997g
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Polybutylene Terephthalate (PBT)

Technical

Operating Temperature -40°C~85°C
Packaging Bulk
Published 2009
Series SACC
Feature Backshell
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Plug, Male Pins
Number of Positions 5
Color Black, Silver
Voltage - Rated 48VAC 60VDC
Fastening Type Push-Twist
Voltage - Rated DC 60V
Contact Finish - Mating Copper Alloy
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 5
Orientation A
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M12-5
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Cable Opening 0.157 ~ 0.236 (4.00mm ~ 6.00mm)
Thread Size M12

Compliance

Material Flammability Rating UL94 HB
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
