1542952 image
Favorite
1542952 image
Favorite
RoHS
RoHS RoHS compliant
Package Metal
Category Connectors, Interconnects / Circular Connectors

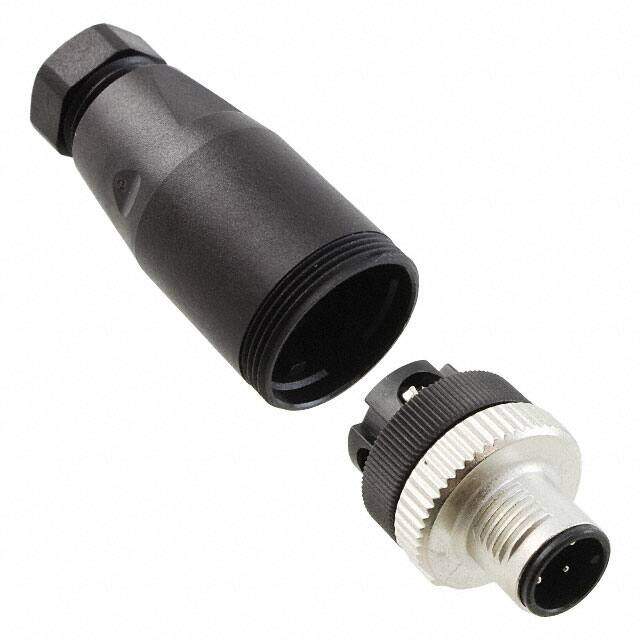

Description Circular Metric Connectors SACC-MS-4CON-PG 7-M SCO
PDF
/
Buying Options
Total Price: USD $9.72
Unit Price: USD $9.724
≥1 USD $9.724
Inventory: 144
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB

Technical

Thread Size M12
Cable Opening 0.157 ~ 0.236 (4.00mm ~ 6.00mm)
Number of Ports 1
Max Current Rating 4A
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Shell Size - Insert M12-4
Shell Finish Nickel
Current Rating 4A
Reach Compliance Code unknown
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation A
Total Number of Contacts 4
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Copper Alloy
Fastening Type Push-Twist
Voltage - Rated 250V
Color Black, Silver
Number of Positions 4
Connector Type Plug, Male Pins
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell
Series SACC
Published 2009
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Backshell Material, Plating Polybutylene Terephthalate (PBT)
Insert Material Polyamide (PA), Nylon
Weight 22.200001g
Housing Material PBT
Shell Material Zinc Die Cast
Package / Case Metal
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Brass
Contact Material Copper Zinc

Supply Chain

Factory Lead Time 4 Weeks
