1542910
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / Circular Connectors
Description

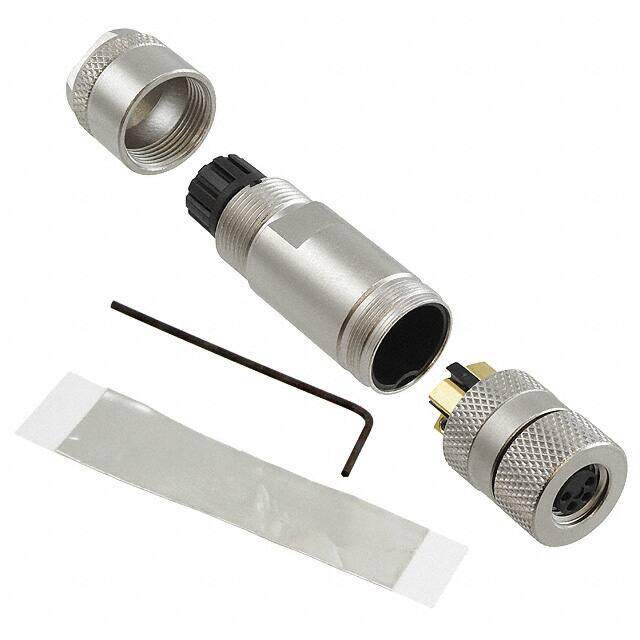

Circular Metric Connectors SACC-M 8FS-4CON M-0.34-SH
PDF
/
Buying Options
Total Price: USD $30.81
Unit Price: USD $30.8088
≥1 USD $30.8088
Inventory: 73
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Zinc
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case Metal
Shell Material Brass
Weight 499.858792g
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Brass, Nickel
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2011
Series SACC
JESD-609 Code e4
Feature Backshell, Coupling Nut
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Receptacle, Female Sockets
Number of Positions 4
Color Silver
Gender Receptacle
Voltage - Rated 30VAC/DC
Fastening Type Threaded
Voltage - Rated DC 30V
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 4
Orientation A
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M8-4
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Max Current Rating 4A
Number of Ports 1
Cable Opening 0.138 ~ 0.217 (3.50mm ~ 5.50mm)
Thread Size M8
Compliance
Material Flammability Rating UL94 HB
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
