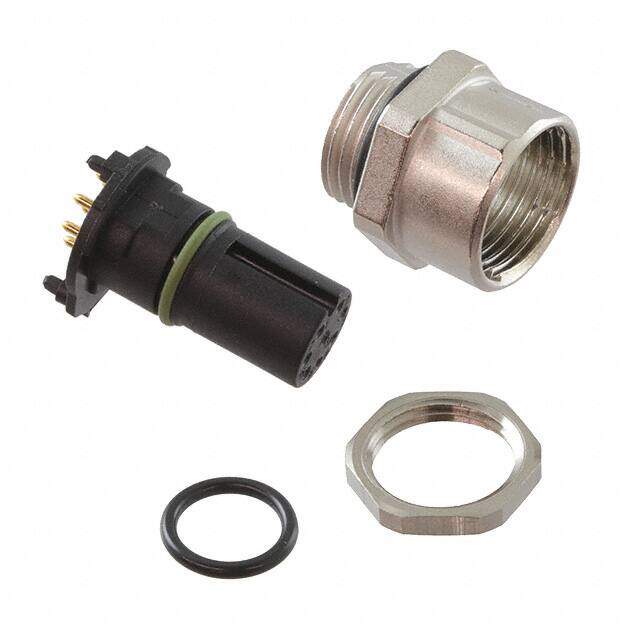

1542790
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Circular Metric Connectors SACC-DSIV-FS- 8CON-L180 SCOTHR
PDF
/
Inventory: 4491
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB
Technical
Thread Size M12
Number of Ports 1
Plating Nickel, Zinc
Max Current Rating 2A
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Shell Size - Insert M12-8
Shell Finish Nickel
Current Rating 2A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Total Number of Contacts 8
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Twist
Voltage - Rated 30V
Gender Male
Color Silver
Number of Positions 8
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series DSIV
Published 2011
Packaging Tray
Operating Temperature -25°C~85°C
Physical
Insert Material Polyphthalamide (PPA)
Weight 10.479997g
Shell Material Zinc Die Cast
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount, Through Hole
Mount Bulkhead, Panel, Through Hole
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 9 Weeks
