1539198
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description

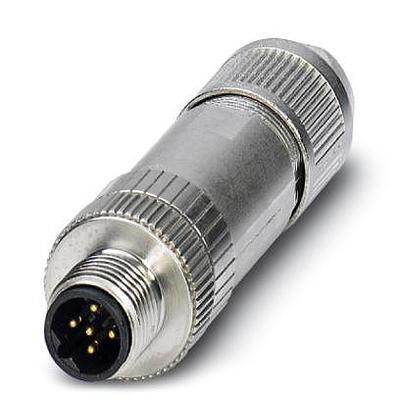

Bus system plug-in connector SACC-M12MSB-2SC SH PB 1539198 Phoenix Contact
PDF
/
Inventory: 1148
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Shell Size - Insert M12-2
Shell Finish Nickel
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation B
Current Rating (Amps) 4A
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 48VAC 60VDC
Color Silver
Number of Positions 2
Connector Type Plug, Male Pins
Termination Spring-Cage
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Feature Backshell
Series SACC
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Zinc Die Cast, Nickel
Insert Material Polyamide (PA66), Nylon 6/6
Housing Material Metal
Shell Material Brass
Mounting Type Free Hanging (In-Line)
Mount Plug-In
Contact Material Copper Tin
