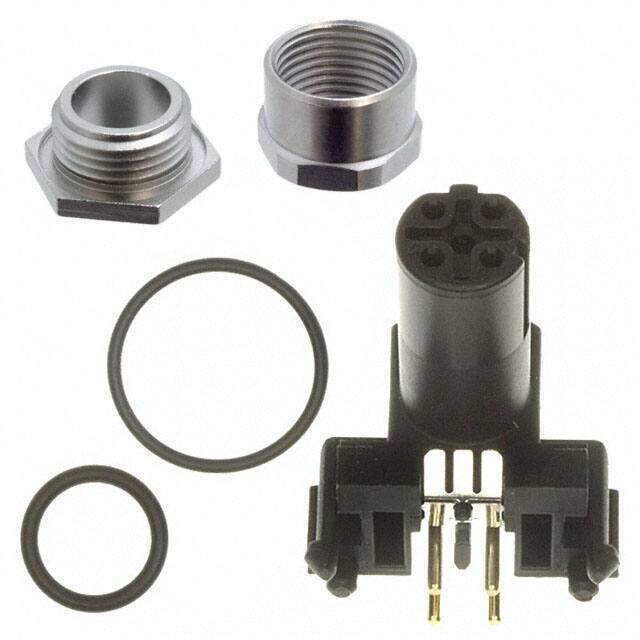

1534630
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE 4POS GOLD SOLDER
PDF
/
Buying Options
Total Price: USD $27.25
Unit Price: USD $27.2536
≥1 USD $27.2536
≥10 USD $25.07296
≥100 USD $23.164944
≥500 USD $22.0748
≥1000 USD $21.953571
Inventory: 557
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Zinc
Mount Bulkhead, Panel, Screw, Through Hole
Mounting Type Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead - Rear Side Nut
Shell Material Zinc Die Cast
Housing Material Polyamide
Weight 14.410006g
Insert Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2009
Series DSIV
JESD-609 Code e4
Feature Board Guide, Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 4
Color Silver
Gender Receptacle
Fastening Type Threaded
Voltage - Rated DC 250V
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 4
Orientation D
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M12-4
Contact Gender Female
Empty Shell NO
Max Current Rating 4A
Number of Ports 1
Thread Size M12
Compliance
Material Flammability Rating UL94 HB
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Ratings Dust Tight, IP67, Waterproof
