1533699
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

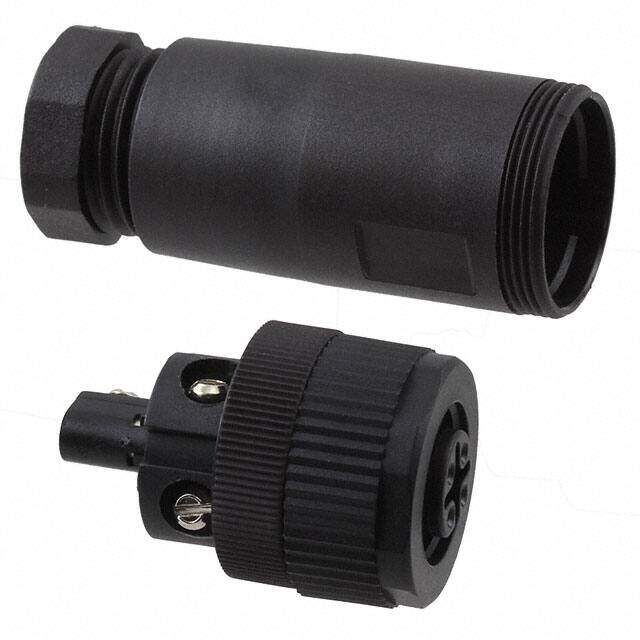

Circular Metric Connectors SACC-M12FSB-5CON PG9
PDF
/
Buying Options
Total Price: USD $14.78
Unit Price: USD $14.784
≥1 USD $14.784
≥10 USD $13.60392
≥100 USD $12.568688
≥500 USD $11.97724
≥1000 USD $11.911469
Inventory: 60
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB
Technical
Thread Size M12
Cable Opening 0.236 ~ 0.315 (6.00mm ~ 8.00mm)
Number of Ports 1
Max Current Rating 4A
Contact Gender Female
Shell Size - Insert M12-5
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation B
Contact Finish - Mating Copper Alloy
Fastening Type Threaded
Voltage - Rated 48VAC 60VDC
Color Black
Number of Positions 5
Connector Type Receptacle, Female Sockets
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Coupling Nut
Series SACC
Published 2011
Packaging Bulk
Physical
Backshell Material, Plating Polyamide (PA), Nylon
Insert Material Polyamide (PA66), Nylon 6/6
Housing Material PBT
Shell Material Plastic
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Bronze
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
