1530647
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

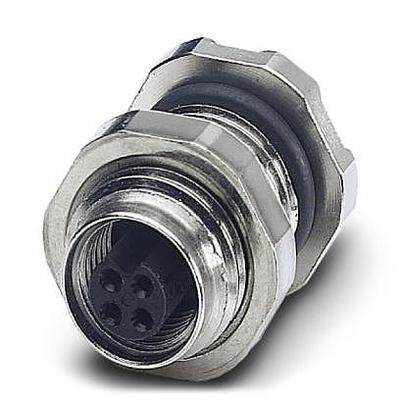

Circular Metric Connectors SACC-DSI-M5FS-3CON- L180
PDF
/
Inventory: 1542
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB
Technical
Thread Size M5
Contact Gender Female
Shell Size - Insert M5-3
Shell Finish Nickel
Current Rating 1A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 60V
Color Silver
Number of Positions 3
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series DSI
Published 2011
Packaging Bulk
Operating Temperature -25°C~80°C
Physical
Insert Material Polyamide (PA66), Nylon 6/6
Weight 4.230004g
Shell Material Brass
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount, Through Hole
Mount Bulkhead, Front Side Nut, Panel
Contact Material Copper Tin
Supply Chain
Factory Lead Time 7 Weeks
