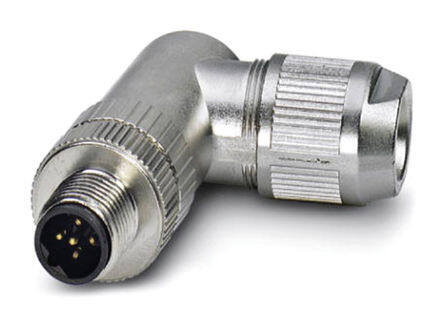

1529933 image
Favorite
1529933 image
Favorite
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description Nickel SACC Non-RoHS Compliant 2015 Circular Connector -40C~85C 4A 48VAC 60VDC
PDF
/
Inventory: 1096
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Contact Material Copper Tin
Mounting Type Free Hanging (In-Line), Angled
Shell Material Brass
Housing Material Metal
Insert Material Polyamide (PA66), Nylon 6/6
Backshell Material, Plating Zinc Die Cast, Nickel

Technical

Operating Temperature -40°C~85°C
Packaging Bulk
Published 2015
Series SACC
JESD-609 Code e4
Feature Backshell
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Spring-Cage
Connector Type Plug, Male Pins
Number of Positions 3
Color Silver
Voltage - Rated 48VAC 60VDC
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 4A
Total Number of Contacts 3
Orientation B
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Shell Finish Nickel
Shell Size - Insert M12-3
Empty Shell NO
Backshell Type SOLID
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)

Compliance

Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
