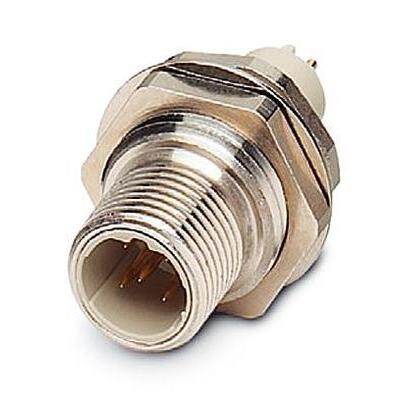

1528206 image
Favorite
1528206 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description Conn M12 Circular PIN 5 POS Solder ST Thru-Hole 5 Terminal 1 Port
PDF
/
Inventory: 7231
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Material Copper Zinc
Mount Bulkhead, Panel, Screw, Through Hole
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Shell Material Brass
Weight 23.010004g
Insert Material Polybutylene Terephthalate (PBT)

Technical

Packaging Bulk
Published 2011
Series DSIV
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 5
Color Silver
Gender Female
Voltage - Rated 60V
Fastening Type Threaded
Contact Finish - Mating Gold
Orientation B
Ingress Protection IP67 - Dust Tight, Waterproof
Reach Compliance Code not_compliant
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M12-5
Contact Gender Male
Thread Size M12

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
