1527841
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description

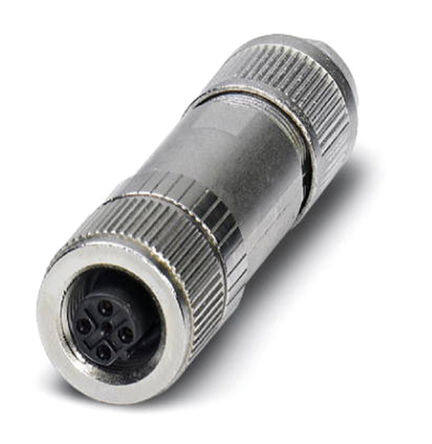

Bus system plug-in connector SACC-M12FSB-3SC SH PB 1527841 Phoenix Contact
PDF
/
Inventory: 1195
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper Tin
Mounting Type Free Hanging (In-Line)
Shell Material Brass
Housing Material Metal
Insert Material Polyamide (PA66), Nylon 6/6
Backshell Material, Plating Zinc Die Cast, Nickel
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2015
Series SACC
JESD-609 Code e4
Feature Backshell, Coupling Nut
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Spring-Cage
Connector Type Receptacle, Female Sockets
Number of Positions 3
Color Silver
Voltage - Rated 48VAC 60VDC
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 4A
Total Number of Contacts 3
Orientation B
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Shell Finish Nickel
Shell Size - Insert M12-3
Empty Shell NO
Backshell Type SOLID
Body/Shell Style PLUG
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
