1524788
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

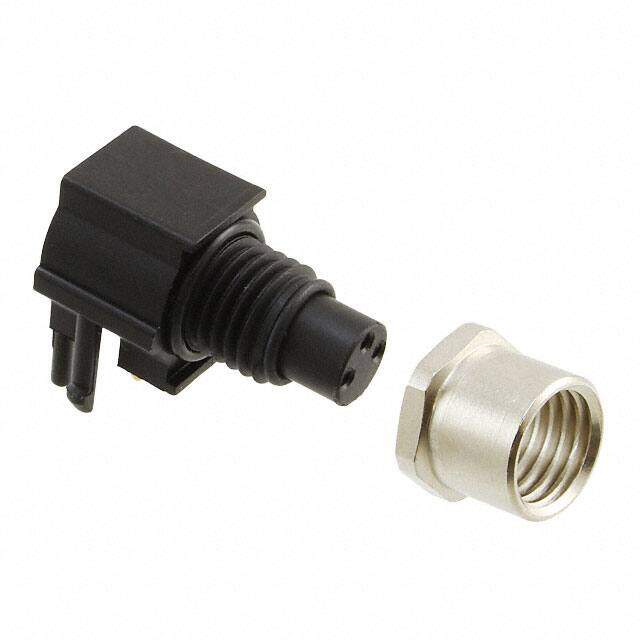

Circular Metric Connectors SACC-SCIV-M 8FS-3CON L-90
PDF
/
Buying Options
Total Price: USD $15.57
Unit Price: USD $15.5672
≥1 USD $15.5672
≥10 USD $14.32552
≥100 USD $13.2352
≥500 USD $12.612336
≥1000 USD $12.543098
Inventory: 170
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Tin
Mount Bulkhead, Panel, Screw, Through Hole
Mounting Type Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead
Shell Material Brass
Housing Material Polyamide
Weight 5.080008g
Insert Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2009
Series DSIV
JESD-609 Code e4
Feature Board Guide, Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 3
Color Black, Silver
Gender Male
Voltage - Rated 50VAC 60VDC
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 3
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Reach Compliance Code unknown
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M8-3
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Max Current Rating 4A
Number of Ports 1
Thread Size M8
Compliance
Material Flammability Rating UL94 HB
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
