1524776
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

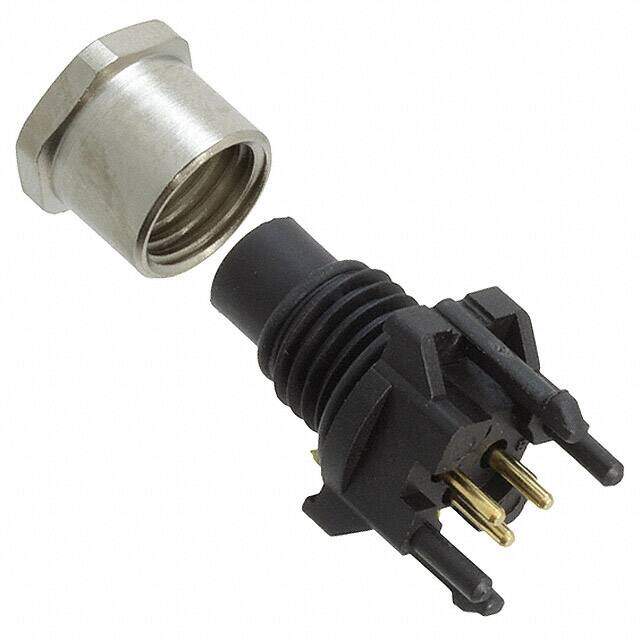

Circular Metric Connectors SACC-DSIV-M 8FS- 3CON-L180-06
PDF
/
Buying Options
Total Price: USD $13.31
Unit Price: USD $13.3144
≥1 USD $13.3144
≥10 USD $12.9492
≥100 USD $12.10176
≥500 USD $11.133672
≥1000 USD $10.286531
≥3000 USD $9.802461
Inventory: 85
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB
Technical
Thread Size M8
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Shell Size - Insert M8-3
Shell Finish Nickel
Current Rating 4A
Reach Compliance Code unknown
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Total Number of Contacts 3
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 50VAC 60VDC
Color Black, Silver
Number of Positions 3
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide, Board Lock
JESD-609 Code e4
Series DSIV
Published 2011
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Insert Material Polyamide (PA66), Nylon 6/6
Weight 5.000005g
Shell Material Brass
Mounting Feature Bulkhead
Mounting Type Panel Mount, Through Hole
Mount Bulkhead, Panel, Snap in, Through Hole
Contact Material Copper Tin
Supply Chain
Factory Lead Time 7 Weeks
