RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors

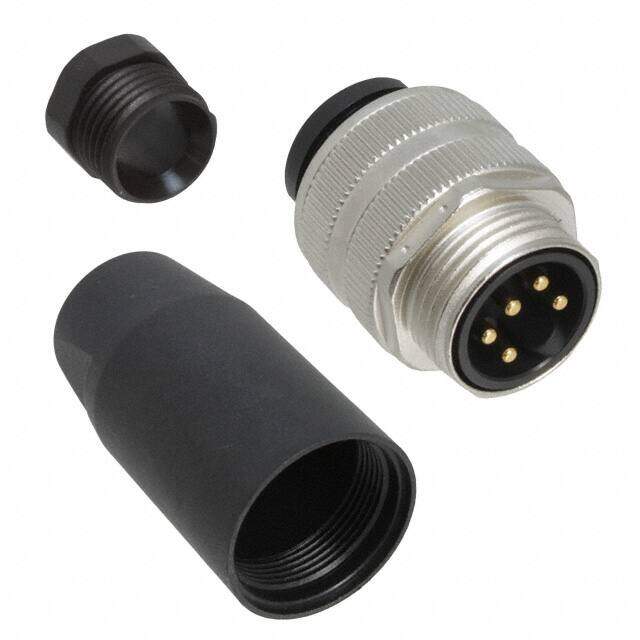

Description Conn Sensor Actuator M 5 POS Screw ST Cable Mount 1 Port
PDF
/
Buying Options
Total Price: USD $36.51
Unit Price: USD $36.5112
≥1 USD $36.5112
≥10 USD $33.59048
≥100 USD $31.034608
≥500 USD $29.57416
≥1000 USD $29.411782
Inventory: 108
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Material Copper Zinc
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Zinc Die Cast
Housing Material Plastic
Weight 44.999992g
Insert Material Polyamide (PA66), Nylon 6/6 and Polyurethane (PUR)
Backshell Material, Plating Polybutylene Terephthalate (PBT)

Technical

Operating Temperature -25°C~85°C
Packaging Bulk
Published 2011
Series SACC
JESD-609 Code e4
Feature Backshell
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Plug, Male Pins
Number of Positions 5
Color Black, Silver
Voltage - Rated 300V
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 5
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Reach Compliance Code unknown
Current Rating 9A
Shell Finish Nickel
Shell Size - Insert 7/8-5
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Cable Opening 0.236 ~ 0.315 (6.00mm ~ 8.00mm)

Compliance

Material Flammability Rating UL94 HB
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
