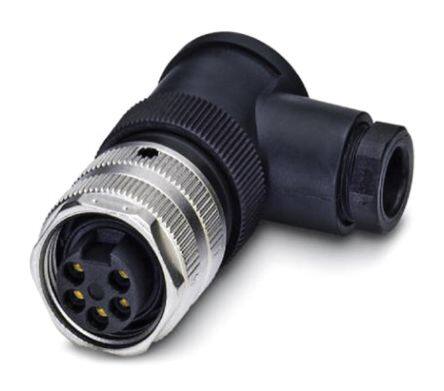

1521517 image
Favorite
1521517 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description Standard Circular Connector SACC-MINFR-5CON-PG 9
PDF
/
Buying Options
Total Price: USD $37.51
Unit Price: USD $37.5056
≥1 USD $37.5056
≥10 USD $34.50832
≥100 USD $31.882928
≥500 USD $30.38244
≥1000 USD $30.21568
Inventory: 72
Minimum: 1
-
+

Technical Details

Physical

Backshell Material, Plating Polybutylene Terephthalate (PBT)
Insert Material Polyamide (PA66), Nylon 6/6 and Polyurethane (PUR)
Weight 45.499992g
Housing Material Plastic
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line), Right Angle
Mount Free Hanging
Contact Material Copper Zinc

Technical

Operating Temperature -25°C~85°C
Packaging Bulk
Published 2011
Series SACC
JESD-609 Code e4
Feature Backshell, Coupling Nut
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Receptacle, Female Sockets
Number of Positions 5
Color Black, Silver
Voltage - Rated 300V
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 5
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 9A
Shell Finish Nickel
Shell Size - Insert 7/8-5
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Cable Opening 0.236 ~ 0.315 (6.00mm ~ 8.00mm)

Supply Chain

Factory Lead Time 4 Weeks

Compliance

Material Flammability Rating UL94 HB
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
