1521494
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

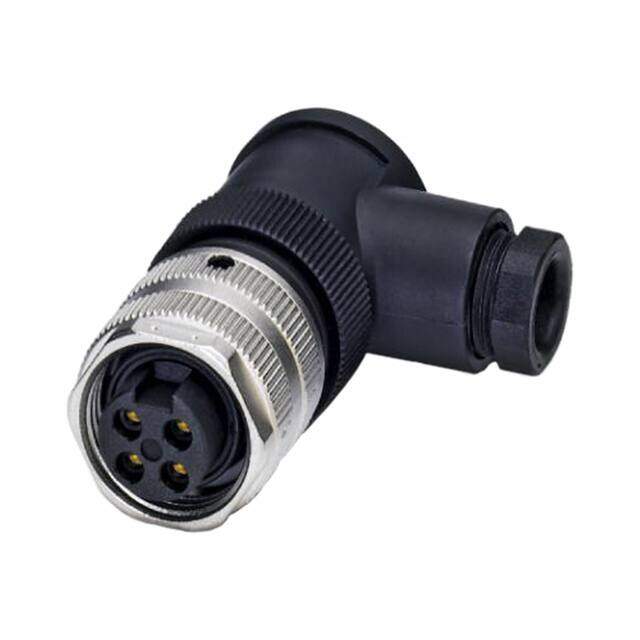

Standard Circular Connector SACC-MINFR-4CON-PG 9
PDF
/
Buying Options
Total Price: USD $34.47
Unit Price: USD $34.4696
≥1 USD $34.4696
≥10 USD $31.7108
≥100 USD $29.29784
≥500 USD $27.919056
≥1000 USD $27.76576
Inventory: 57
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB
Technical
Cable Opening 0.236 ~ 0.315 (6.00mm ~ 8.00mm)
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Shell Size - Insert 7/8-4
Shell Finish Nickel
Current Rating 9A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Total Number of Contacts 4
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 300V
Color Black, Silver
Number of Positions 4
Connector Type Receptacle, Female Sockets
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell, Coupling Nut
JESD-609 Code e4
Series SACC
Published 2011
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Backshell Material, Plating Polybutylene Terephthalate (PBT)
Insert Material Polyamide (PA66), Nylon 6/6 and Polyurethane (PUR)
Weight 44.499991g
Housing Material Plastic
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line), Right Angle
Mount Free Hanging
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
