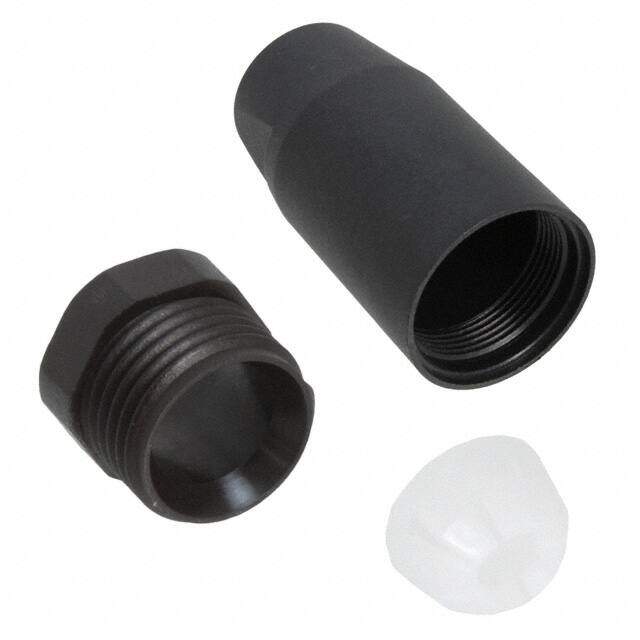

1521384 image
Favorite
1521384 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description Conn Sensor Actuator F 5 POS Screw ST Cable Mount 1 Port
PDF
/
Buying Options
Total Price: USD $35.5
Unit Price: USD $35.4992
≥1 USD $35.4992
≥10 USD $32.65768
≥100 USD $30.172912
≥500 USD $28.753032
≥1000 USD $28.595142
Inventory: 40
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB

Dimensions

Length 78.5mm

Technical

Cable Opening 0.236 ~ 0.315 (6.00mm ~ 8.00mm)
Max Current Rating 9A
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Shell Size - Insert 7/8-5
Shell Finish Nickel
Current Rating 9A
Reach Compliance Code unknown
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Total Number of Contacts 5
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 300V
Color Black, Silver
Number of Positions 5
Connector Type Receptacle, Female Sockets
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell, Coupling Nut
JESD-609 Code e4
Series SACC
Published 2011
Packaging Bulk
Operating Temperature -25°C~85°C

Physical

Backshell Material, Plating Polybutylene Terephthalate (PBT)
Insert Material Polyamide (PA66), Nylon 6/6 and Polyurethane (PUR)
Weight 40.100004g
Housing Material PBT
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Zinc

Supply Chain

Factory Lead Time 7 Weeks
