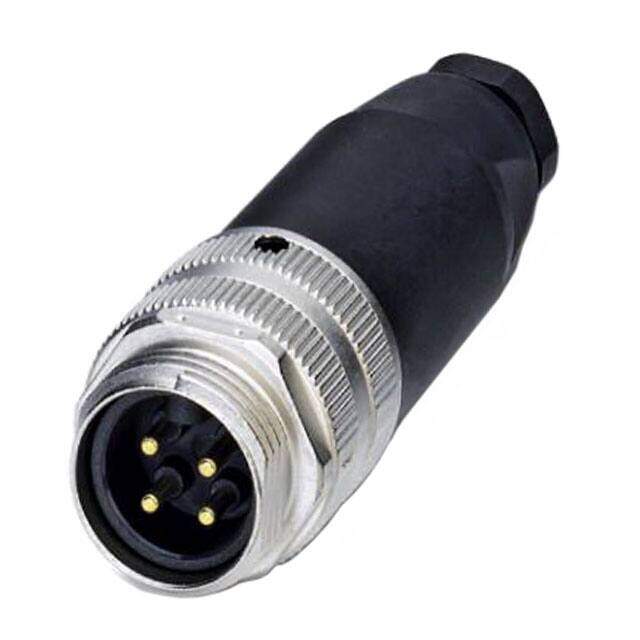

1521326
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / Circular Connectors
Description
Conn Sensor Actuator M 4 POS Screw ST Cable Mount 4 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $32.44
Unit Price: USD $32.4368
≥1 USD $32.4368
≥10 USD $29.8452
≥100 USD $27.574448
≥500 USD $26.276712
≥1000 USD $26.13248
Inventory: 75
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Zinc
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case Metal
Shell Material Zinc Die Cast
Housing Material Plastic
Weight 43.49999g
Insert Material Polyamide (PA66), Nylon 6/6 and Polyurethane (PUR)
Backshell Material, Plating Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2011
Series SACC
JESD-609 Code e4
Feature Backshell
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Plug, Male Pins
Number of Positions 4
Color Black, Silver
Voltage - Rated 300V
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 4
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 9A
Shell Finish Nickel
Cable Opening 0.236 ~ 0.315 (6.00mm ~ 8.00mm)
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Shell Size - Insert 7/8-4
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB
