Package /
Category Connectors, Interconnects / Circular Connectors

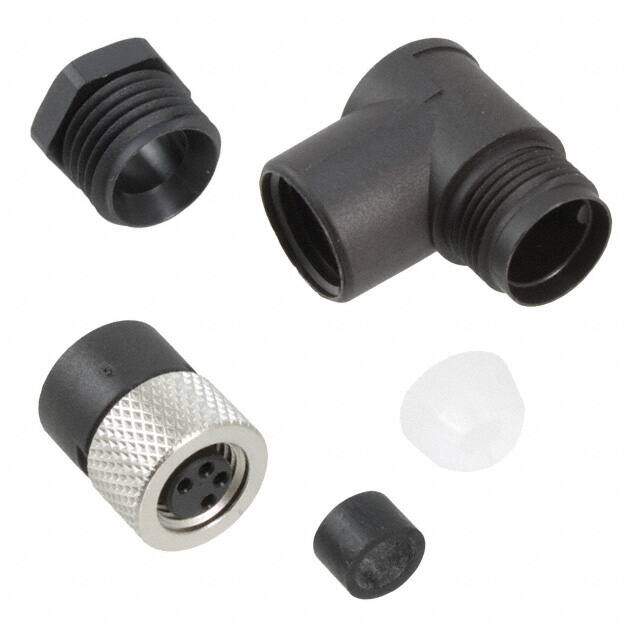

Description Circular Metric Connectors SACC-M 8FR-4CON-M 4P R/A SOLDER
PDF
/
Buying Options
Total Price: USD $14.26
Unit Price: USD $14.2648
≥1 USD $14.2648
Inventory: 166
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 HB

Technical

Wire/Cable Diameter 5 mm
Thread Size M8
Cable Opening 0.138 ~ 0.197 (3.50mm ~ 5.00mm)
Contact Gender Female
Shell Size - Insert M8-4
Shell Finish Nickel
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Contact Finish - Mating Gold
Voltage - Rated DC 30V
Fastening Type Threaded
Voltage - Rated 30VAC/DC
Gender Receptacle
Color Black, Silver
Number of Positions 4
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell, Coupling Nut
JESD-609 Code e4
Series SACC
Published 2011
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Backshell Material, Plating Polybutylene Terephthalate (PBT)
Insert Material Polyamide (PA), Nylon
Weight 8.800004g
Housing Material PBT
Shell Material Brass
Mounting Type Free Hanging (In-Line), Right Angle
Mount Free Hanging
Contact Material Copper Zinc

Supply Chain

Factory Lead Time 4 Weeks
